Reliable system for sprinkler installations.

Guarantee reliability.

Guarantee reliability.

Niczuk sprinkler brackets are FM and VdS certified and guarantee compliance with the highest safety standards for fire protection. FM and VdS certified products are tested by independent laboratories and the strict product quality criteria are constantly checked by licensed audi-tors. FM and VdS certification meets the strict criteria of foreign investors and insurance institutions.

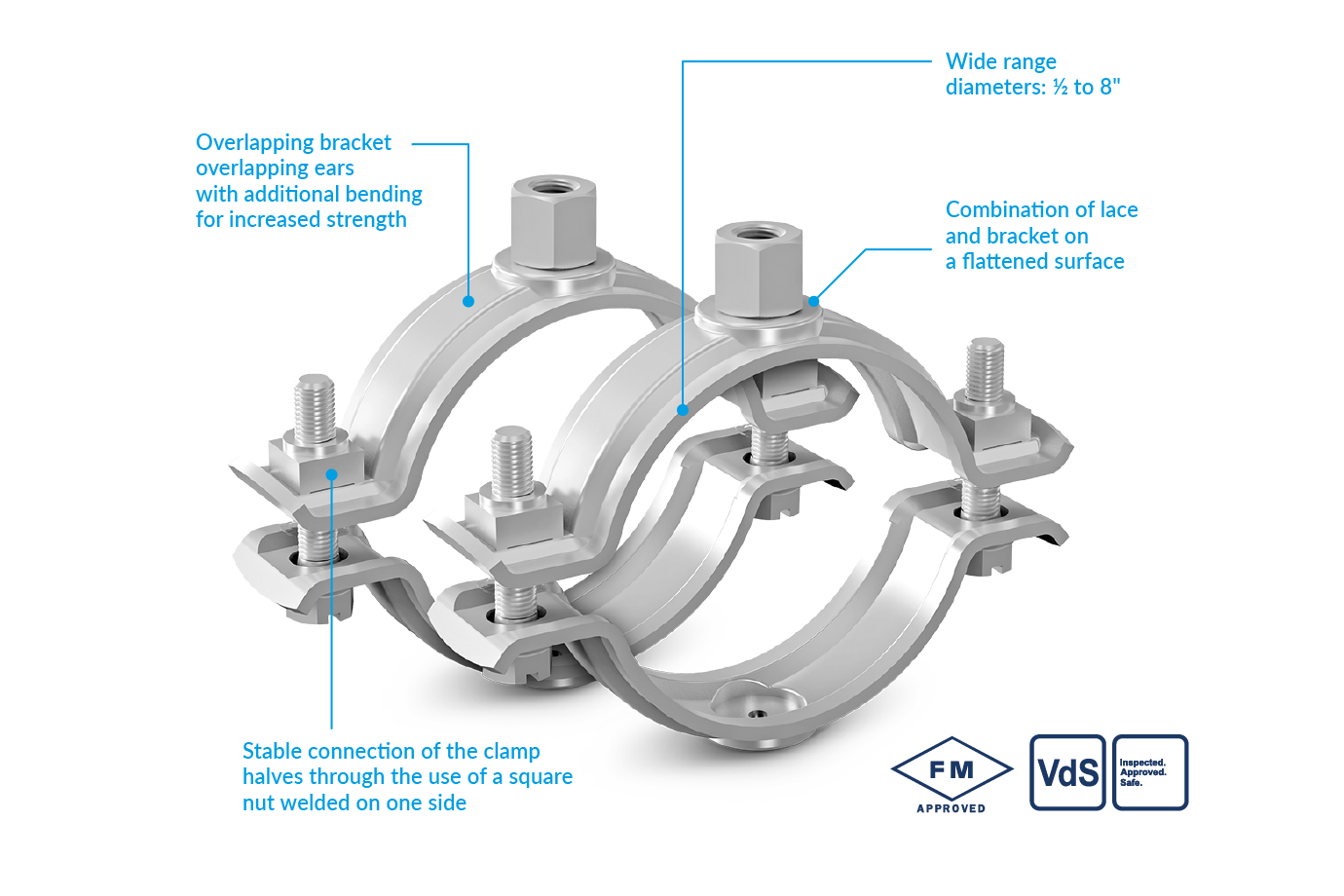

Clamps DN-F-V - Robust construction made of flat bar up to 4 mm thick.

Clamps DN-F-V - Robust construction made of flat bar up to 4 mm thick.

Application: For the attachment of fixed water extinguishing systems.



• Overlapping bracket overlapping ears with additional bending for increased strength

• Stable connection of the clamp halves through the use of a square nut welded on one side

• Wide range diameters: ½ to 8"

• Combination of lace and bracket on a flattened surface



The construction of sprinkler systems in accordance with VdS and FM guide-lines, which specify standards for fire protection and safety technology. These guidelines allow risks to be reduced and complete protection to be guaranteed right from the planning stage. The ran-ge of covers from up to 20225 m and connections from M8 to M16 allows the use of in many installation variants.
