Nipro – maximum fire protection.

For fireproofing pipe and cable penetrations through walls and ceilings.

Some thoughts on fire protection of facilities.

Active fire safety devices

Active fire safety devices make it easier to locate a fire outbreak and take firefighting action. These include, for example, systems that automatically activate when a fire is detected, such as detectors or alarms that respond to a rise in temperature or the appearance of smoke and flames. This category includes sprinklers and water curtains, whose trouble-free operation also depends on the quality of fixings, special loops and clamps. In the offer of reputable manufacturers of clamps for sprinkler systems, in addition to the standard ones, we can find clamps with international FM and VdS certificates, which guarantee the highest level of safety in the field of fire protection. Possession of FM and VdS certificates meets the stringent criteria of foreign investors and insurance institutions, which ensures obtaining much better insurance terms for the facility.

Passive fire protections

Equally important are passive fire protections that can slow the spread of fire, giving time to evacuate people and property. It is worth thinking about them already at the design stage, as this allows to achieve the required level of fire resistance of the building, depending on its purpose. In this context, it should be recalled how important a role in the fire safety system falls to fire zones. Separated from each other by fireproof walls, floors and ceilings, they are a barrier to the flames that will stop the fire for the time necessary to organize a firefighting operation. For this to be possible, their boundaries - and these are the walls and ceilings of the building - must meet load-bearing, airtightness and insulation (REI) requirements. This requires the use of dedicated products and materials with the appropriate fire resistance class, which have the necessary certificates and National or European Technical Assessment.

Nipro

Synonymous with quality in the group of passive fire protection products is the Nipro line for various types of installation penetrations. Here you will find means to restore the original fire resistance class of a partition, which is the boundary of fire zones, for example, after making a culvert for installations. The range of these products includes pastes, paints, ties and collars, using the properties of swelling and thermal insulation. Their operating principles and effectiveness are based on proven technology developed by THALE over the years.





Some thoughts on fire protection of facilities.

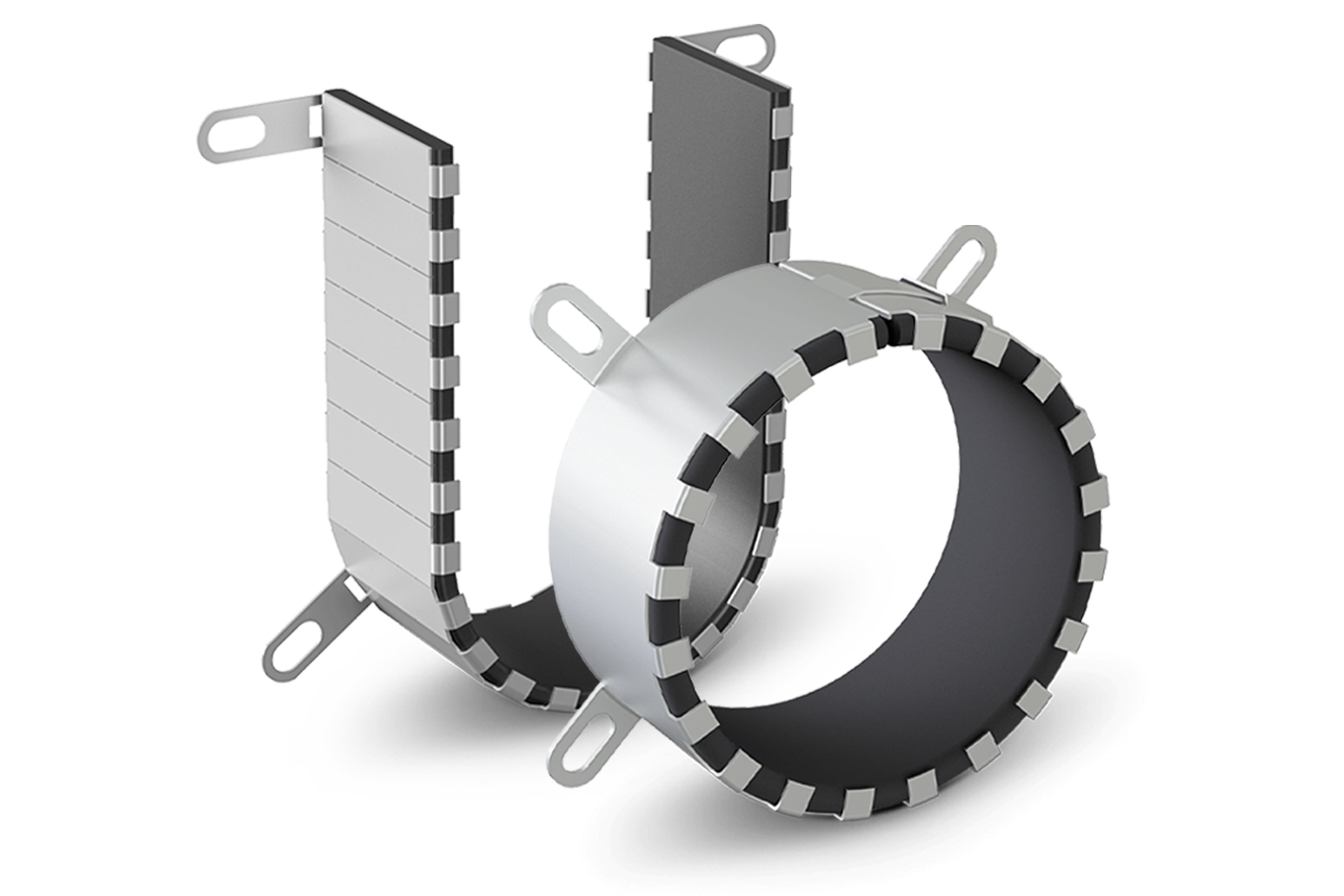

1. Nipro ECG and ECGCut Collar.

Application:

Collar installed outside the wall or ceiling, used for fireproof sealing of installation passages for plastic and metal pipes with or without fire insulation.The flange is supplied as a finished product.



Designed for fireproofing of penetrations:

  • Combustible pipes without insulation or with FEF or PE insulation
  • Non-combustible pipes with FEF or PE insulation
  • FEF-insulated composite tubes
  • Cables in PVC conduit
  • Heating and plastic pipe bundles



Assembly:

  • Fill the spaces between the pipe and the edge of the hole with mortar gypsum, cement or mineral wool
  • Select ECG or ECGCut Collar to the desired diameter and instal it on the tube
  • Fix the collar to the partition with metal anchors or steel threaded rods washer and nut
  • Installation and application details in ETA-22/0020 or from your Niczuk advisor
1. Nipro ECG and ECGCut Collar.

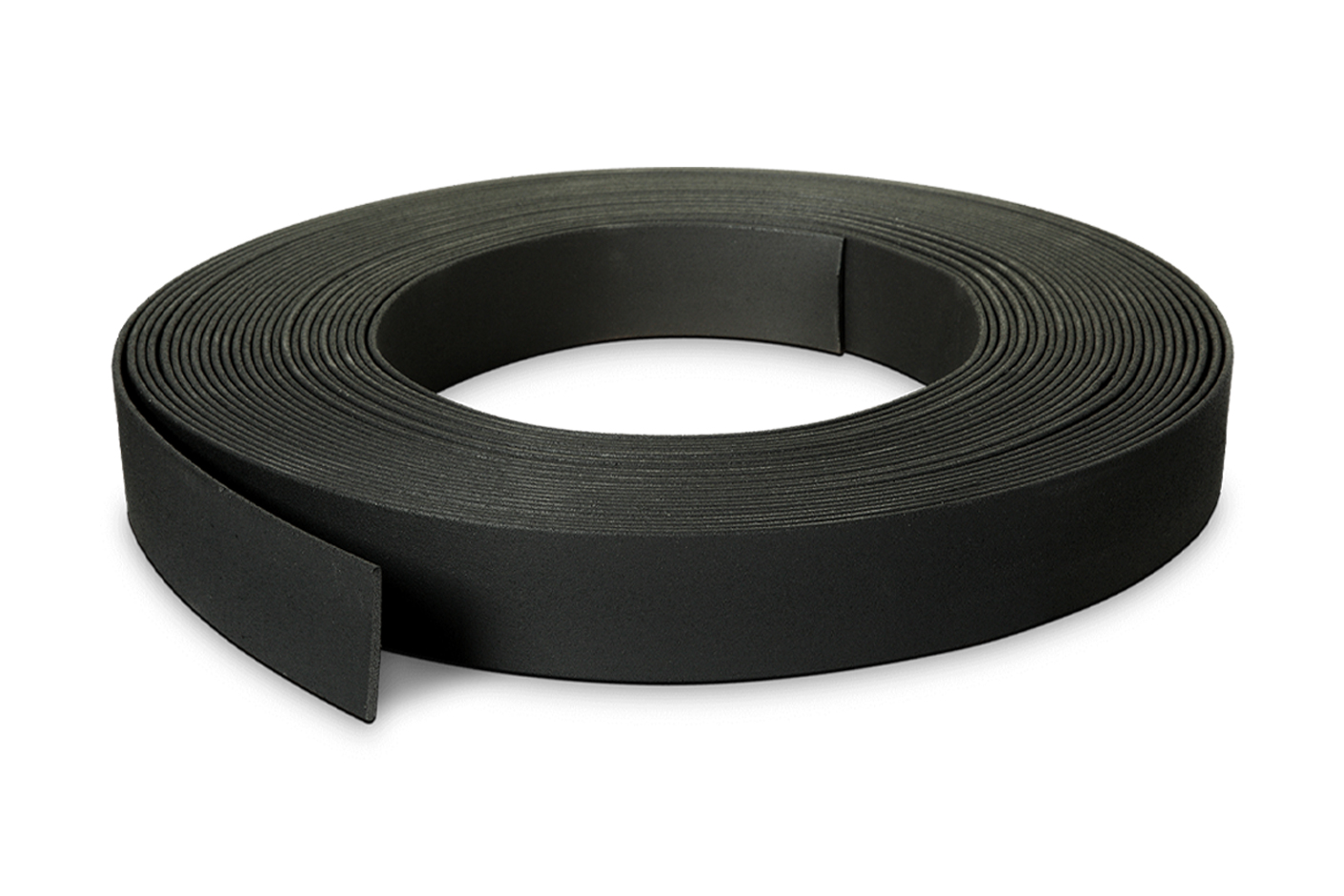

2. Nipro InCut Wrap.

Application:

Intumescent band, placed inside a conduit, used for fire sealing of installation passages of plastic pipes passing through walls and ceilings. Supplied as a finished product.



Designed for fireproofing:

  • Combustible pipes without insulation or with FEF, PE or mineral wool insulation
  • Steel, cast iron and copper pipes with FEF or PE insulation
  • Composite pipes with FEF, PE or mineral wool insulation
  • Cable harnesses



Assembly:

  • Select the length, width and thickness of the tie from the table in ETA-22/0021 Wrap the tie around the pipe or bundle
  • Slide the whole into the interior of the partition. The tie should be in the axis of the wall or 10–15mm from the bottom edge of the ceiling
  • Fill the space between the pipe and the partition with cement/gypsum mortar or mineral wool
  • Installation and application details in ETA-22/0021 or from your Niczuk advisor
2. Nipro InCut Wrap.

3. Nipro InStrip Wrap.

Application:

Intumescent band, placed inside a conduit, used for fire sealing of installation passages of plastic pipes passing through walls and ceilings. Supplied as a finished product.



Designed for fireproofing:

  • Uninsulated combustible pipes



Assembly:

  • Select the tie according to the outer diameter of the pipe or cut to size
  • The tie must be in one piece, it cannot be combined Wrap the band around the pipe and slide into the culvert in the axis of the wall or 1 cm above the lower edge of the ceiling
  • Fill the remaining space of the culvert with cement/gypsum mortar or mineral wool
  • Installation and application details in ETA-22/0019 or from your Niczuk advisor
3. Nipro InStrip Wrap.

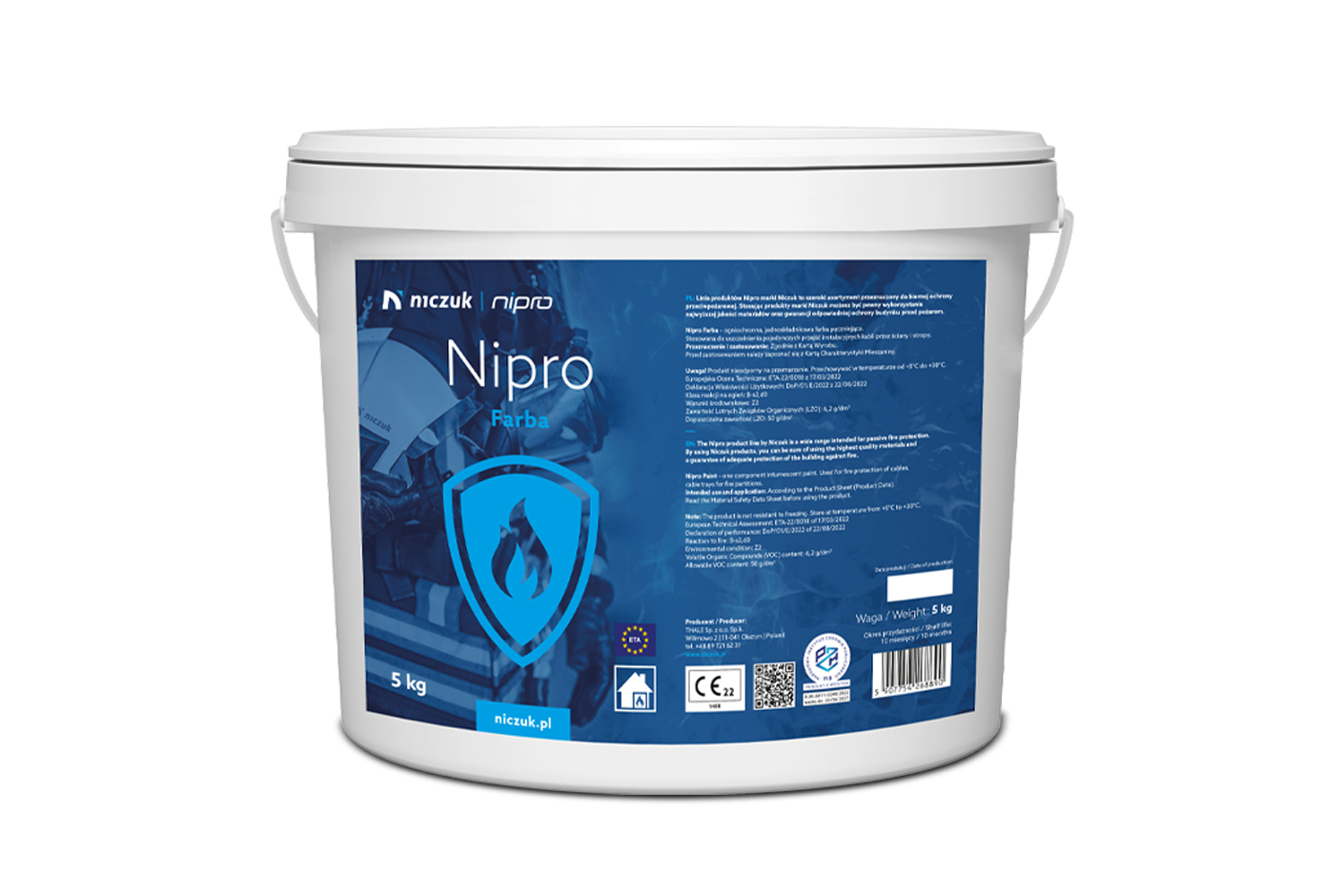

4. Nipro Coating.

Application:

Intumescent fire protection paint designed to protect cable trays, cables or combinations of cables passing through walls and ceilings.



Designed for fireproofing of penetrations:

  • Cables, cable trays



Assembly:

  • Fill the free space of the culvert with mineral wool
  • Coat the wool with a layer of Nipro Coating
  • Coat the cables and the trough with a layer of Nipro Coating
  • Details of installation and application in ETA-22/0018 or from your Niczuk advisor
4. Nipro Coating.

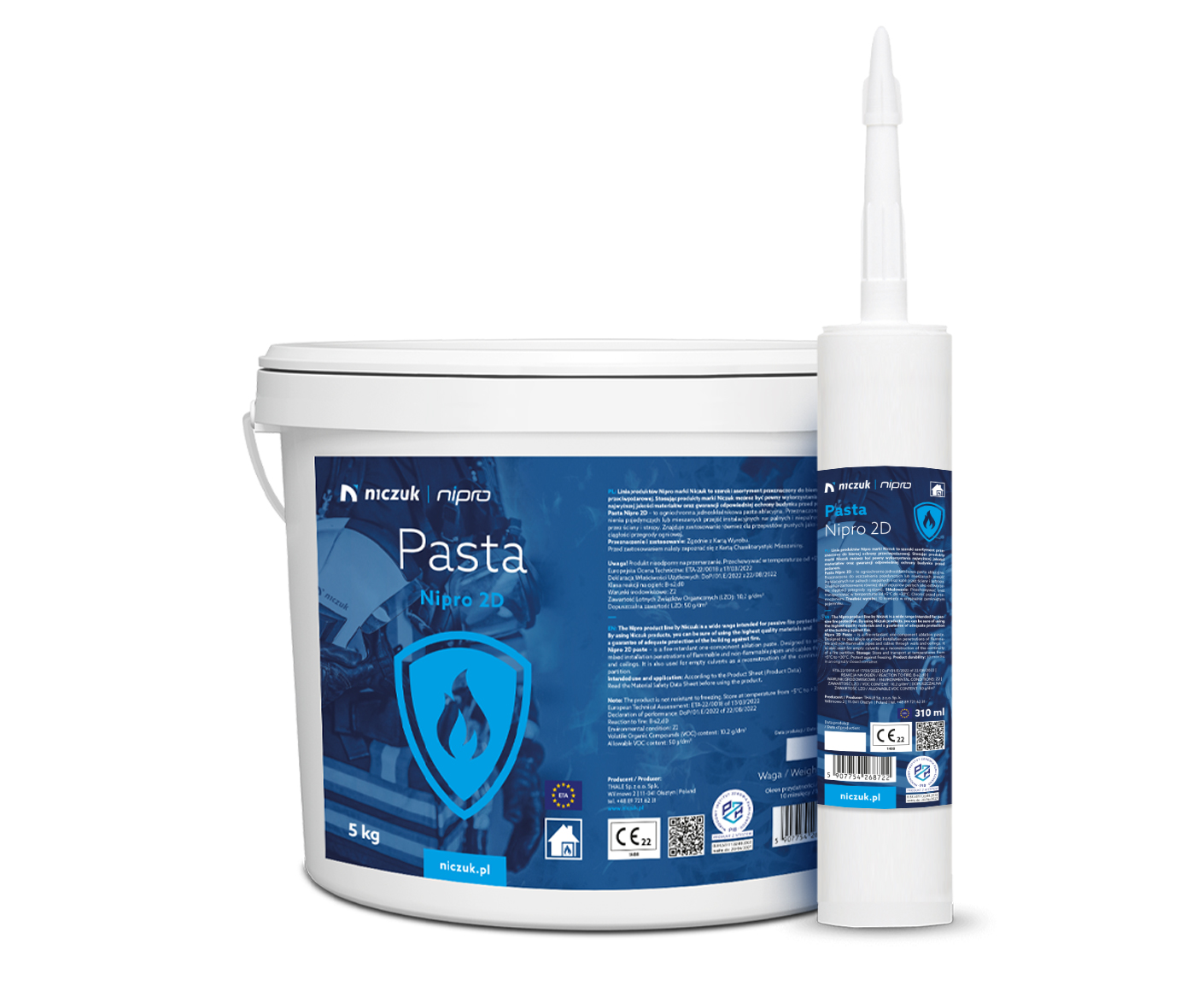

5. Nipro 2D Paste.

Application:

A high-density fireproof ablative paste designed to protect pipe penetrations insulated with mineral wool.



Designed for fireproofing:

  • Combustible pipes (with ECG Collar)
  • Non-combustible pipes in mineral wool insulation
  • Fire barriers (restoration of their continuity)



Assembly:

Fill the free space of the culvert with mineral wool

  • Coat the wool with a layer of Nipro Coating
  • Coat the cables and the trough with a layer of Nipro Coating
  • Details of installation and application in ETA-22/0018 or from your Niczuk advisor
5. Nipro 2D Paste.

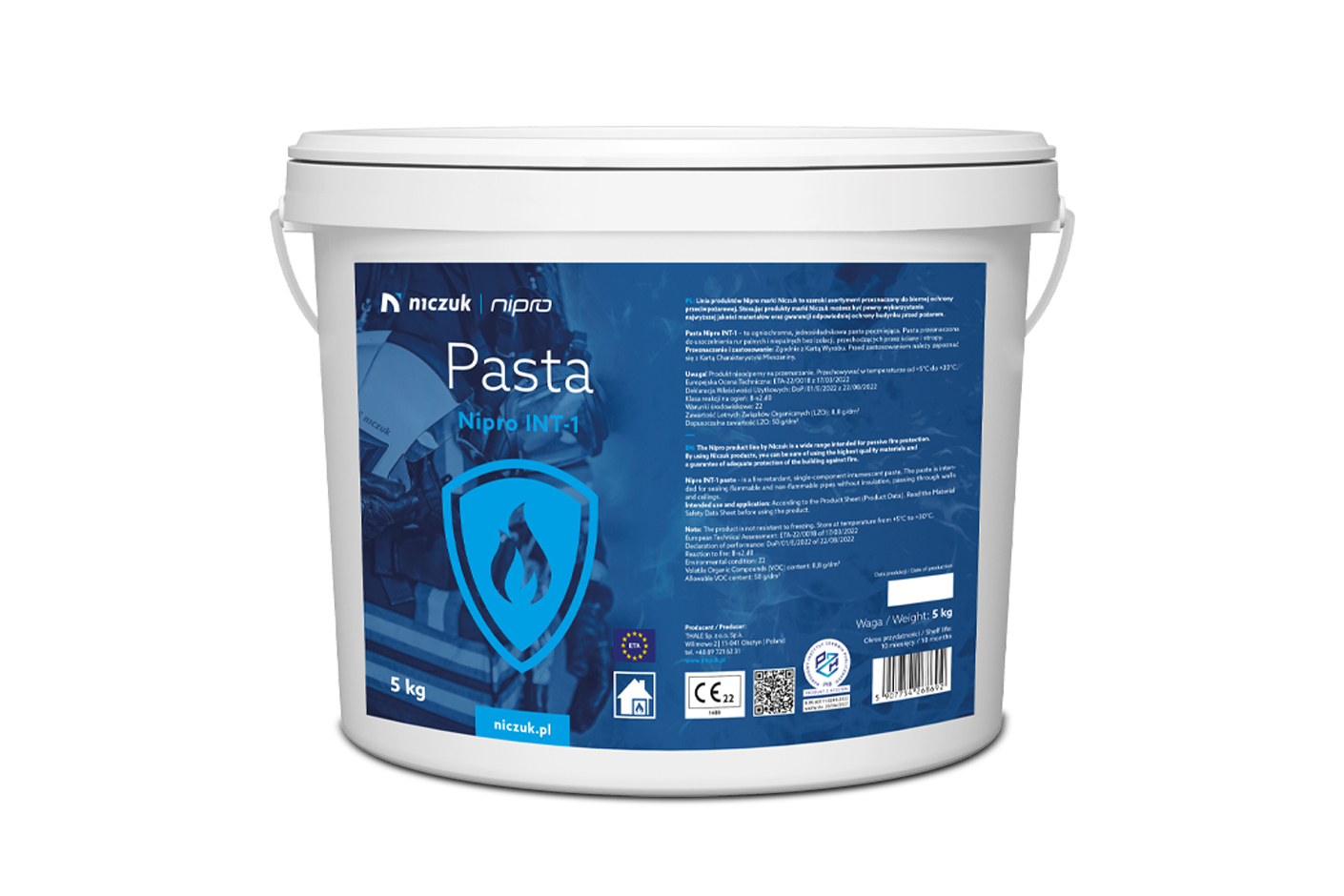

6. Nipro INT-1 Paste.

Application:

Intumescent paste designed for fire protection of steel or cast iron pipes without insulation, plastic pipes passing through walls and ceilings.



Designed for fireproofing of penetrations:

  • Steel, cast iron and copper pipes
  • Combustible pipes



Assembly:

  • Fill the space between the pipe and the baffle tightly using mineral wool or cement mortar
  • Apply Nipro INT-1 fire protection paste to the building partition and pipe as recommended in ETA-22/0018
  • Details of installation and application in ETA-22/0018 or from your Niczuk brand advisor
6. Nipro INT-1 Paste.

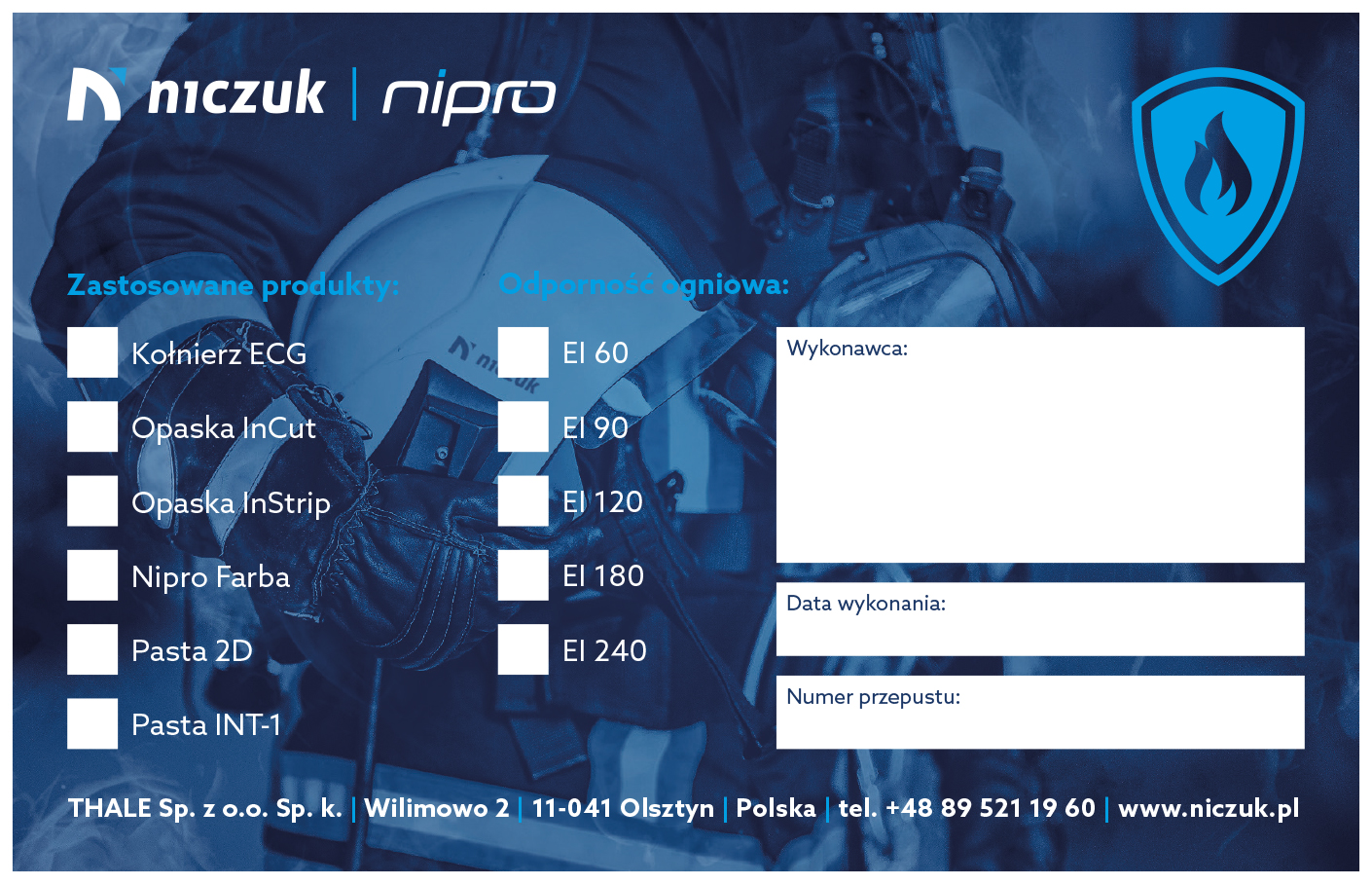

7. Firestop identification plate Nipro NTFP.

Application:

Plaque to be completed with information on passive fire protection: fire resistance class, name of contractor, date of construction, system used. To be placed in a prominent position next to the fire-protection culvert.

7. Firestop identification plate Nipro NTFP.

Get a Contractor's Licence with our training courses.

The end of the training is the granting of the Contractor's Licence, which is increasingly required by inspectors and fire officers. The licence confirms that the participant has received training in the correct execution of passive fire crossings in accordance with the recommendations of the European Technical Assessment. The validity of such a licence is 2 years and its scope covers the use of Nipro products products offered by Niczuk.
