Niczuk brand service platforms.

Choose versatility of use and safety!

Niczuk brand service platforms.

Niczuk brand service platforms are extremely practical. Thanks to their lightweight, modular design, they can be easily assembled, and the whole thing does not require welding. It will be appreciated, especially when the project does not include such structures or when the building or installation has been upgraded. In such cases, the use of our platforms will significantly facilitate access to the specific zone.

Using them allows, first of all, the construction of non-collision technical passages running over installations. They also provide unobstructed access to devices and technical rooms and are ideal for the construction of safe communication lines.

The aforementioned modularity of the Niczuk brand platforms guarantees versatile installation and allows a wide range of applications, including such tasks as:

Niczuk brand service platforms.

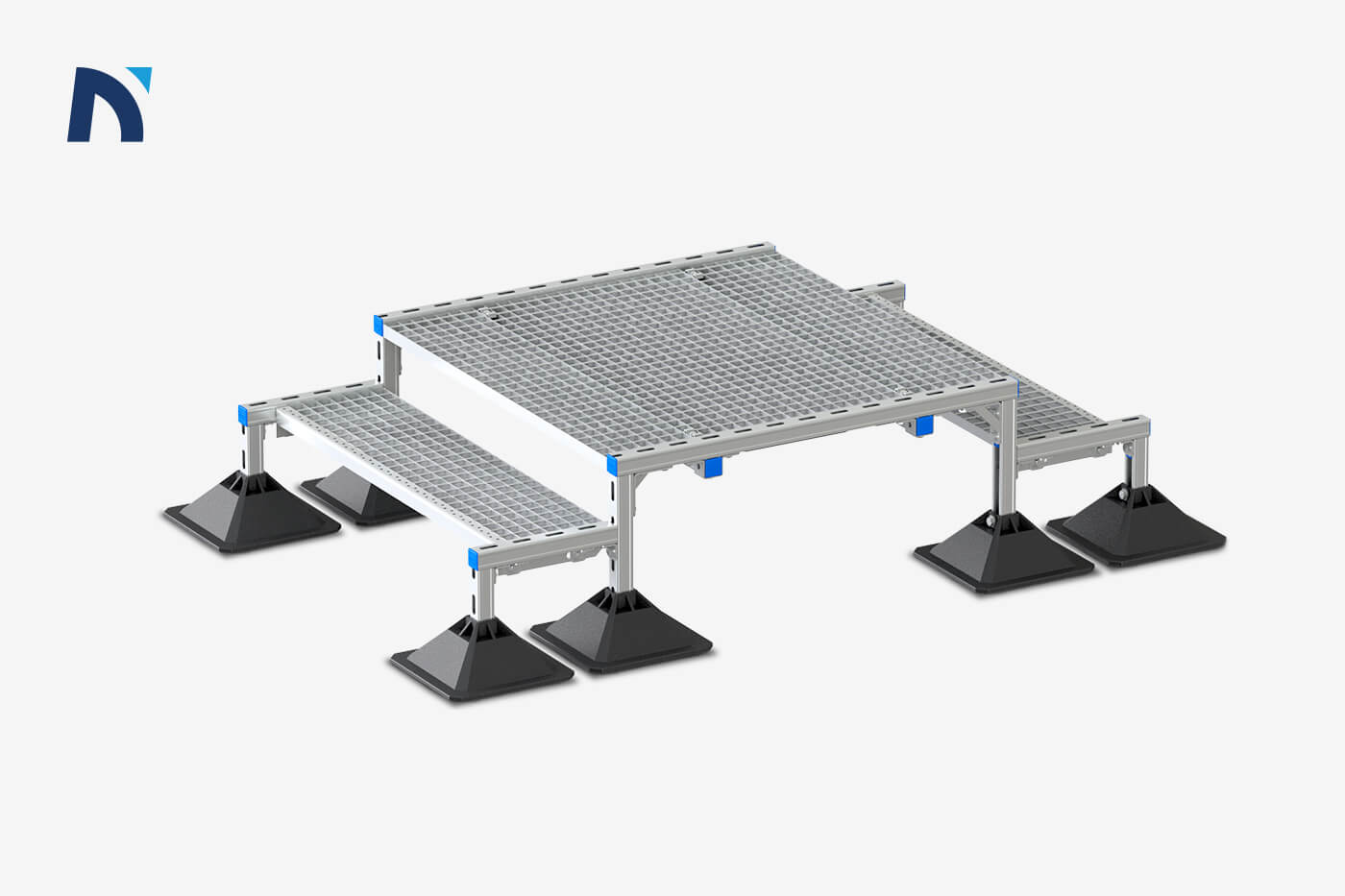

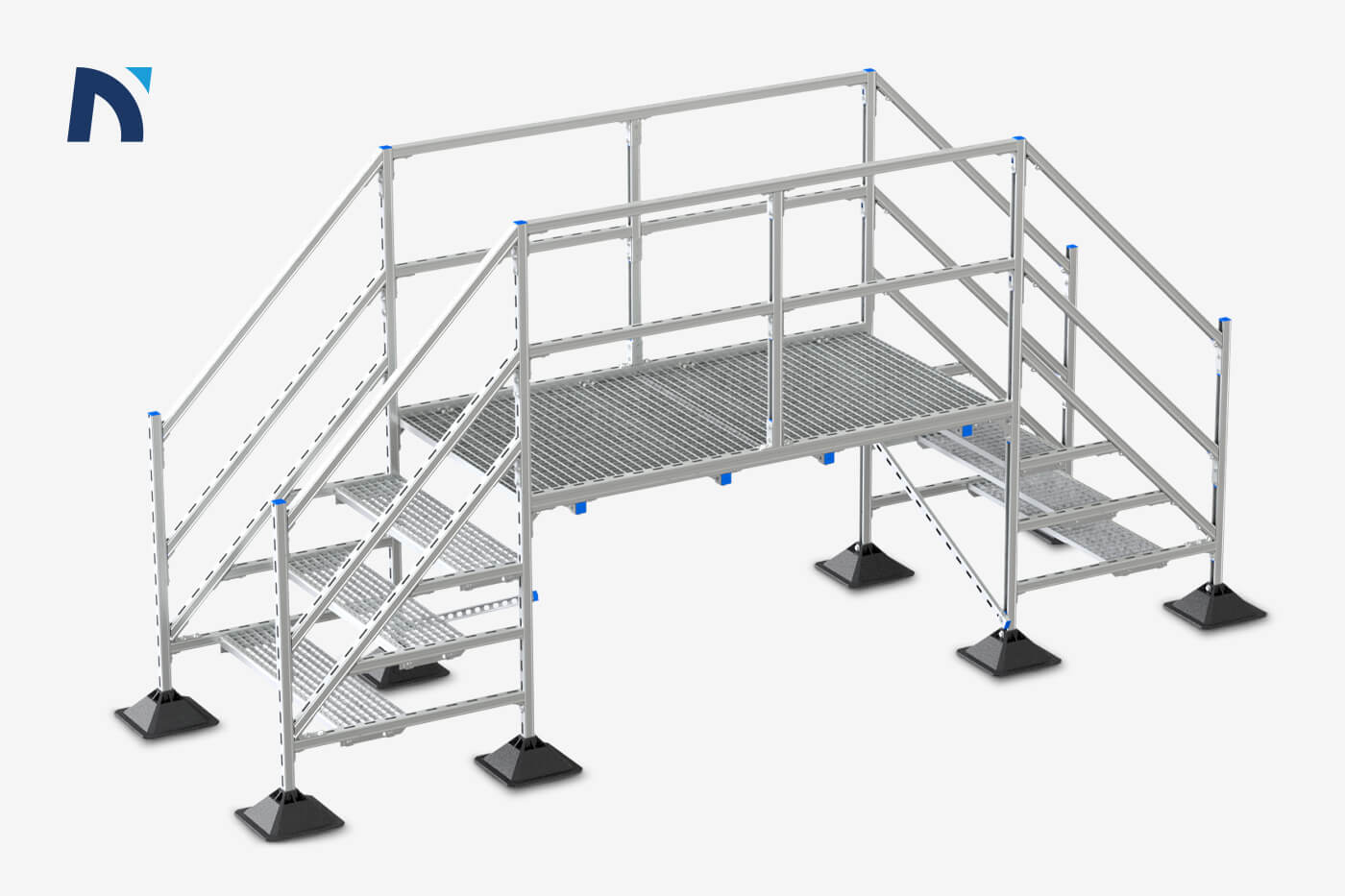

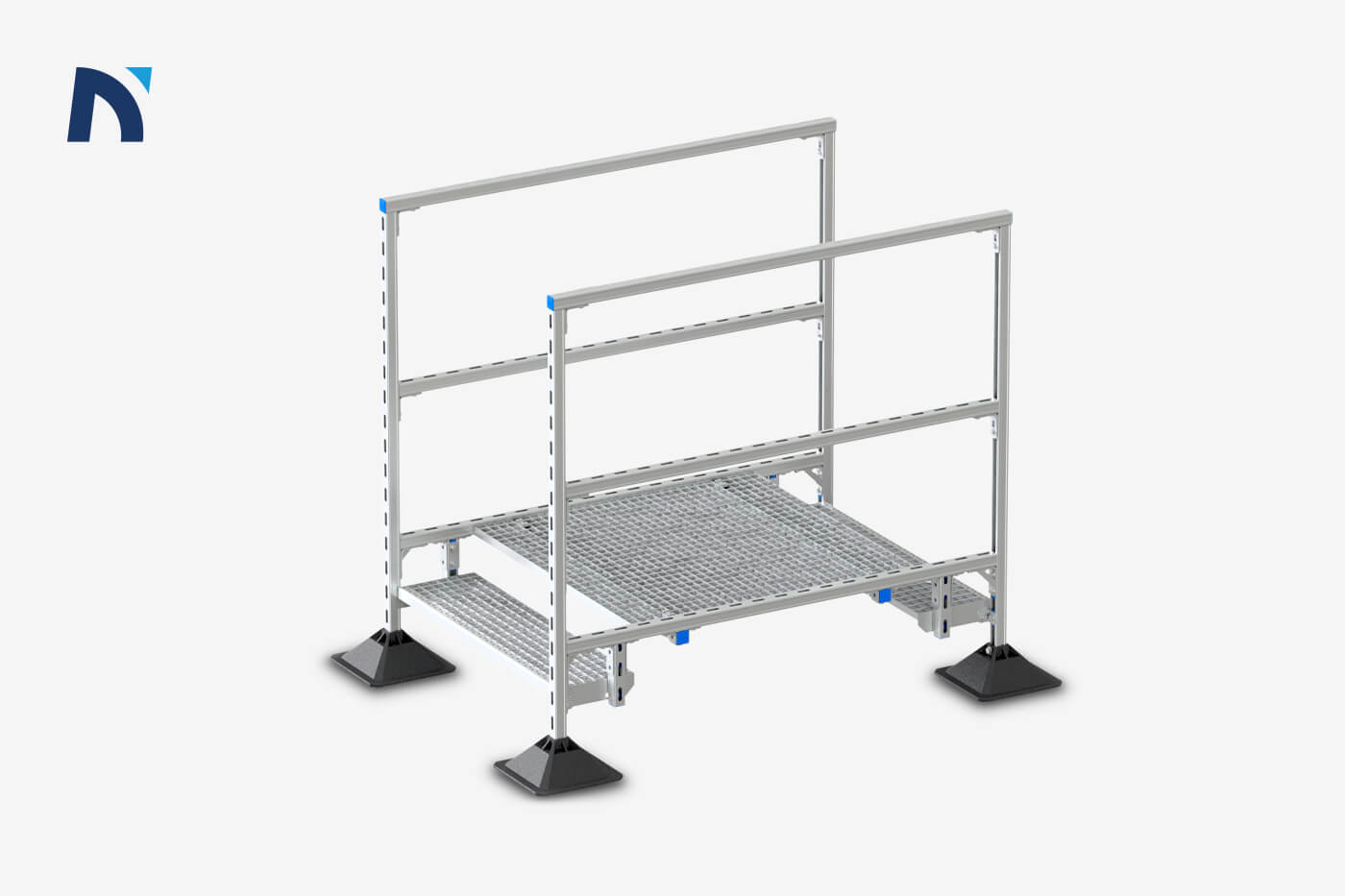

1. Construction of non-collision platforms over installations:

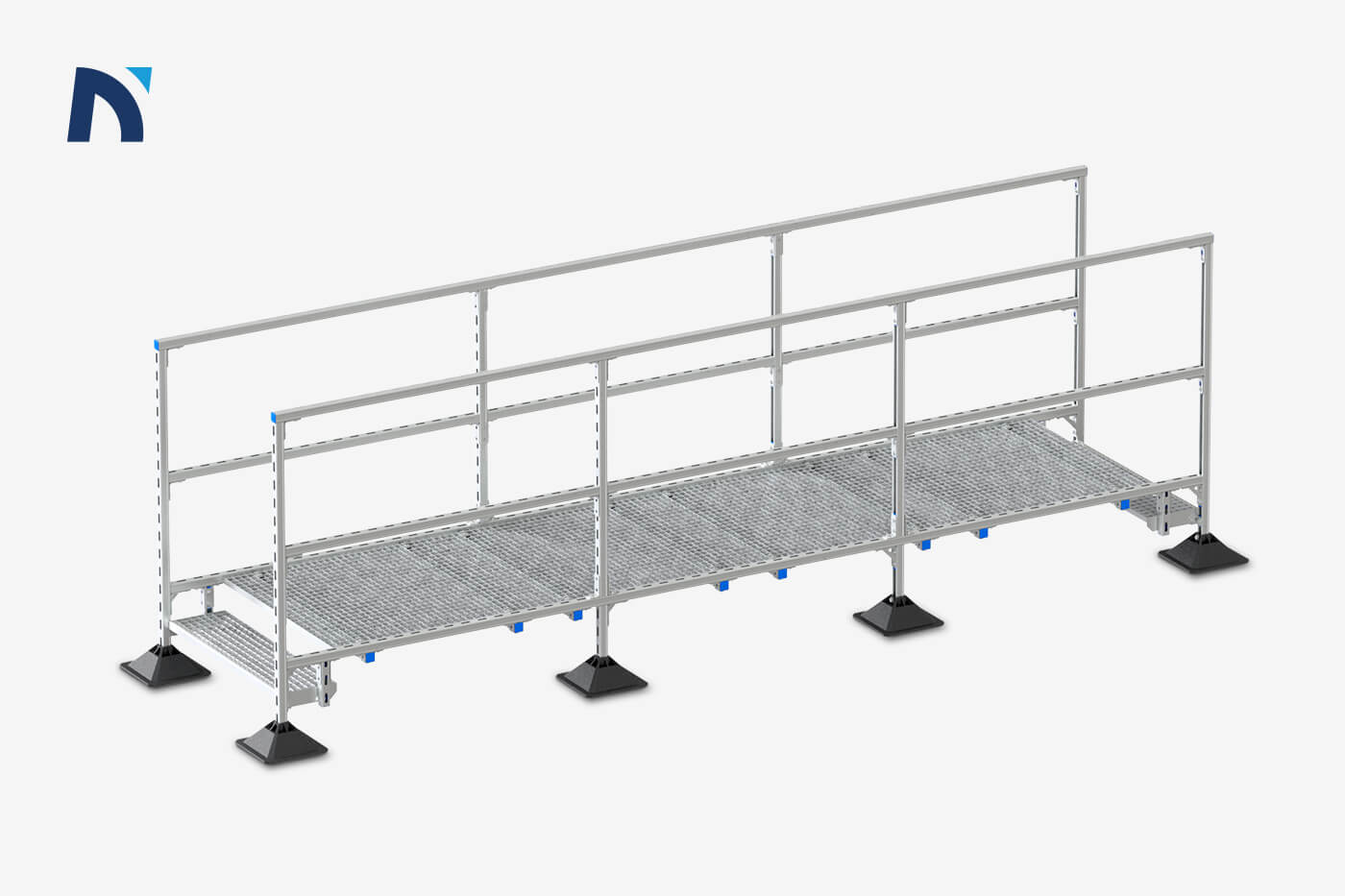

2. Setting up communication lines:

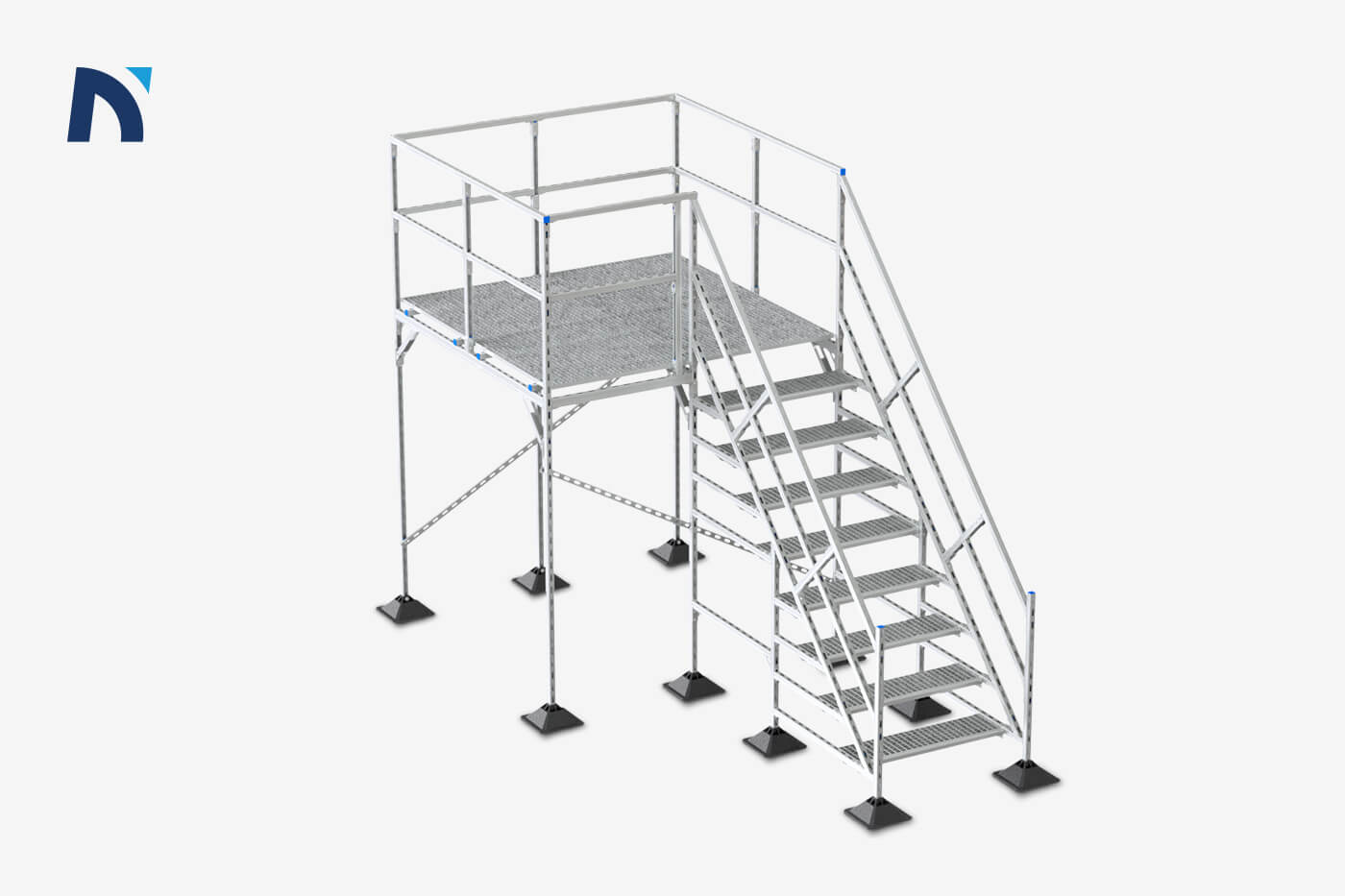

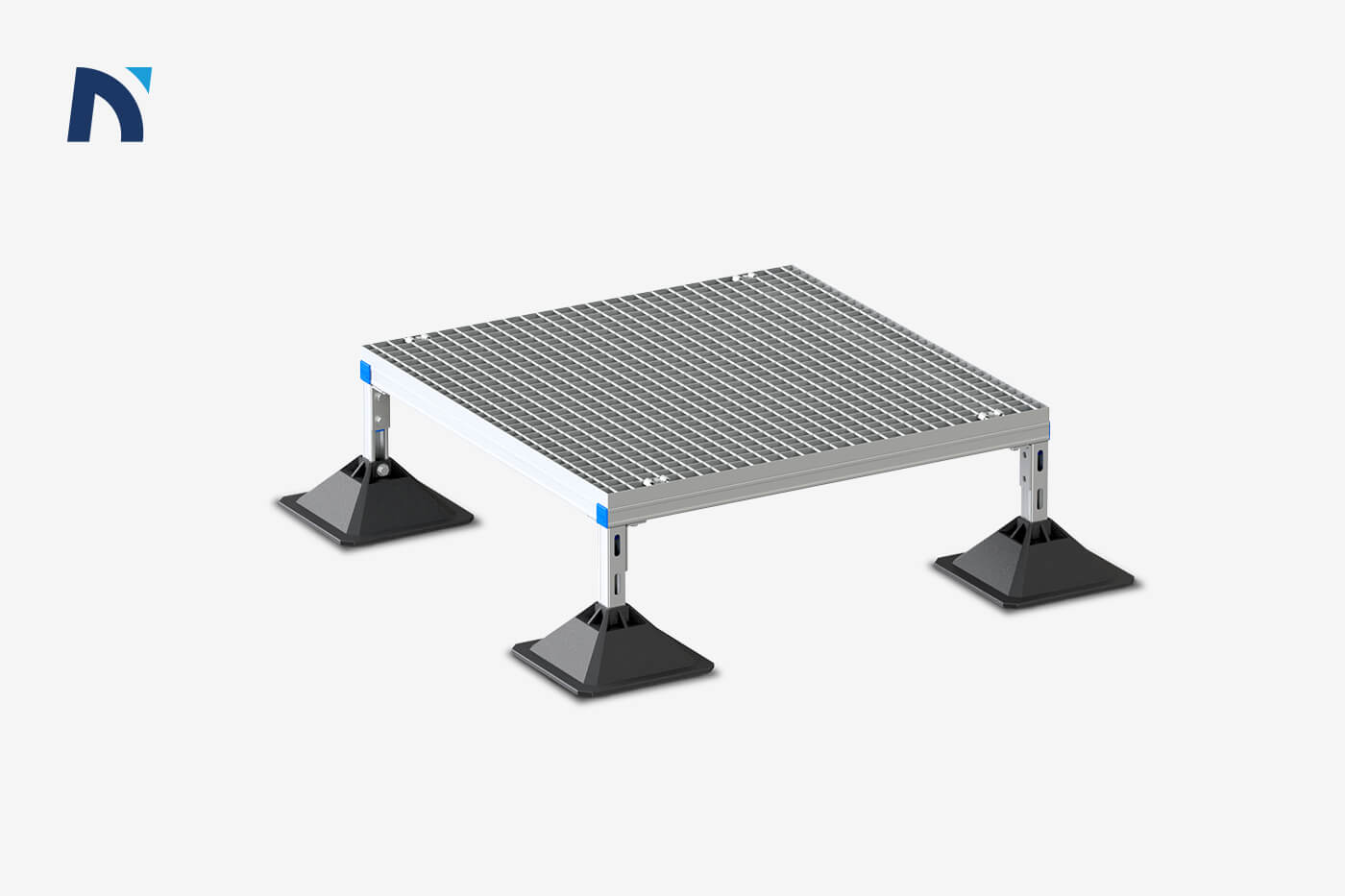

3. Providing safe access to devices and technical rooms, using high and low platforms:

Advantages of the Niczuk brand service platforms.

Advantages of the Niczuk brand service platforms.

From the installer's point of view, these platforms are excellent for ergonomics and work safety. They also have a measurable impact on reducing maintenance and servicing costs. Their modular design allows installation and technical inspection without the need to set up scaffolding.

Choose versatility of use and safety!

Thanks to the simplicity of assembly and quick disassembly, the Niczuk brand service platforms are used wherever assembly time is important. It is determined by the fact that the elements of the structure can be connected without welding.

Another advantage of the Niczuk brand platforms is that they place less load on the ground than in the case of welded structures. It is thanks to the low weight that it is possible to use plastic rooftop support bases. It allows safe and non-invasive installation on roofs (like those covered with a membrane, bitumen felt or steel sheet). In addition, the advantages of the rooftop support bases are durability and resistance to weather, thanks to the three options of anti-corrosion protection. These are:

  • Galvanic zinc is for use inside buildings.
  • Hot-dip galvanizing is for outdoor use.
  • Ultra Cover XP is also for outdoor use, giving excellent corrosion resistance at various temperatures and chemical conditions.
    Elements used in the Niczuk brand service platforms.

The advantages of the Niczuk brand service platforms are determined by the use of properly designed elements made of the highest quality materials. Mounting channels can be of different parameters, and among the most popular are those with a width of 41 mm and a wall thickness of 2.5 mm (MG, MF, MH, MI). The system is compatible with most Niczuk brand products. Moreover, in the case of projects requiring non-standard solutions, it is possible to use elements with customized dimensions.

Save time with a pre-assembly service!

The possibility of modification, together with pre-assembly services, are optimal solutions for reducing costs and saving time. Especially since Niczuk brand technical advisors provide help and support at every stage of the project. It is worth using their professional assistance throughout the course of the project.

Feel free to contact us: projekty@niczuk.pl
